เครื่องขัดสีไร้สายระบบ DA 5" รุ่น PB105 SUMO
Cordless DA Polisher 5" Mod.PB105 SUMO
เครื่องขัดสีไร้สาย 5นิ้วระบบ DA รุ่น PB105 SUMO
Cordless DA Polisher 5" PB105 SUMO







คุณสมบัติ (Feature)
- สำหรับขัดเงาสีรถยนต์ ขัดลบรอย ขัดซักเงา ขัดไฟหน้ารถ

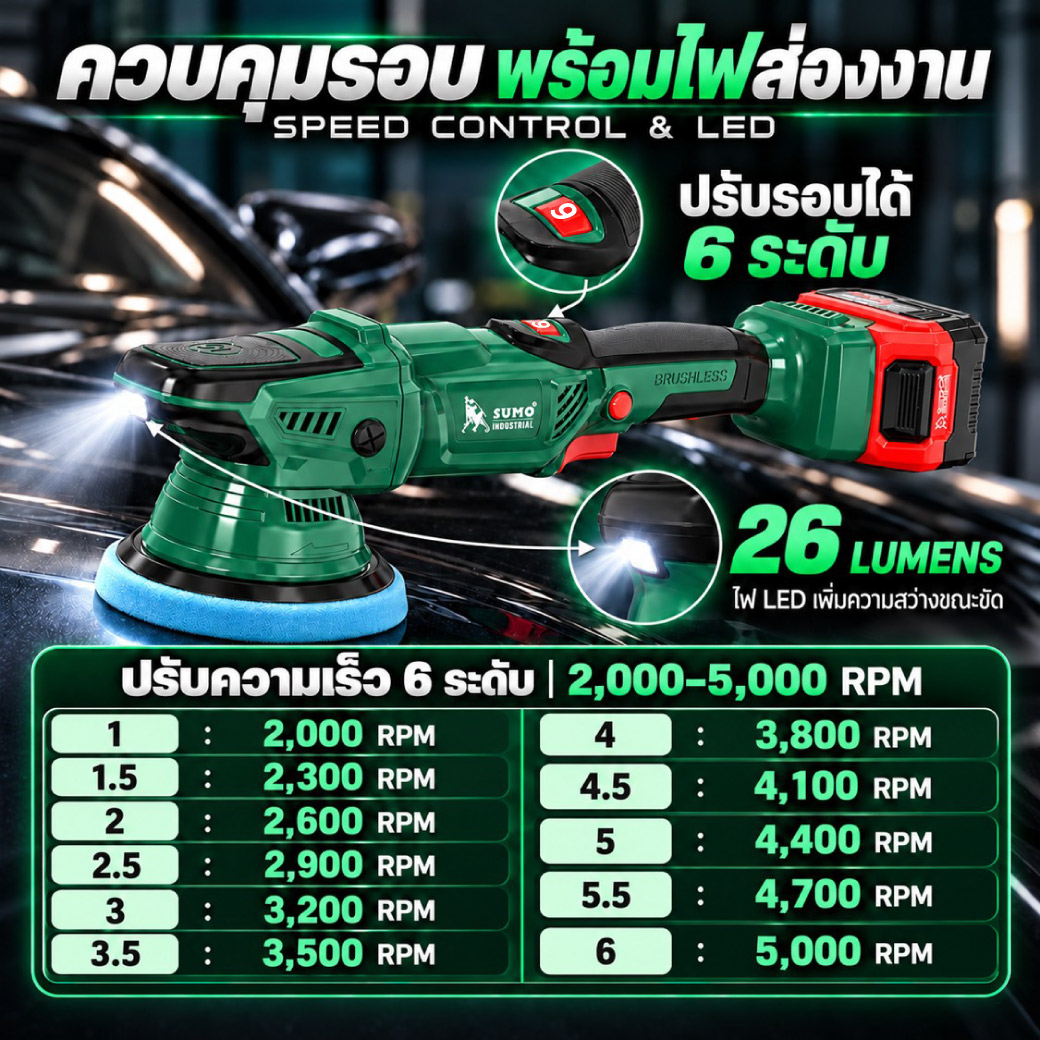

- ปรับรอบได้ 6 ระดับ 2000-5000 RPM
- เพิ่มไฟLEDขณะขัด 26 LUMENS

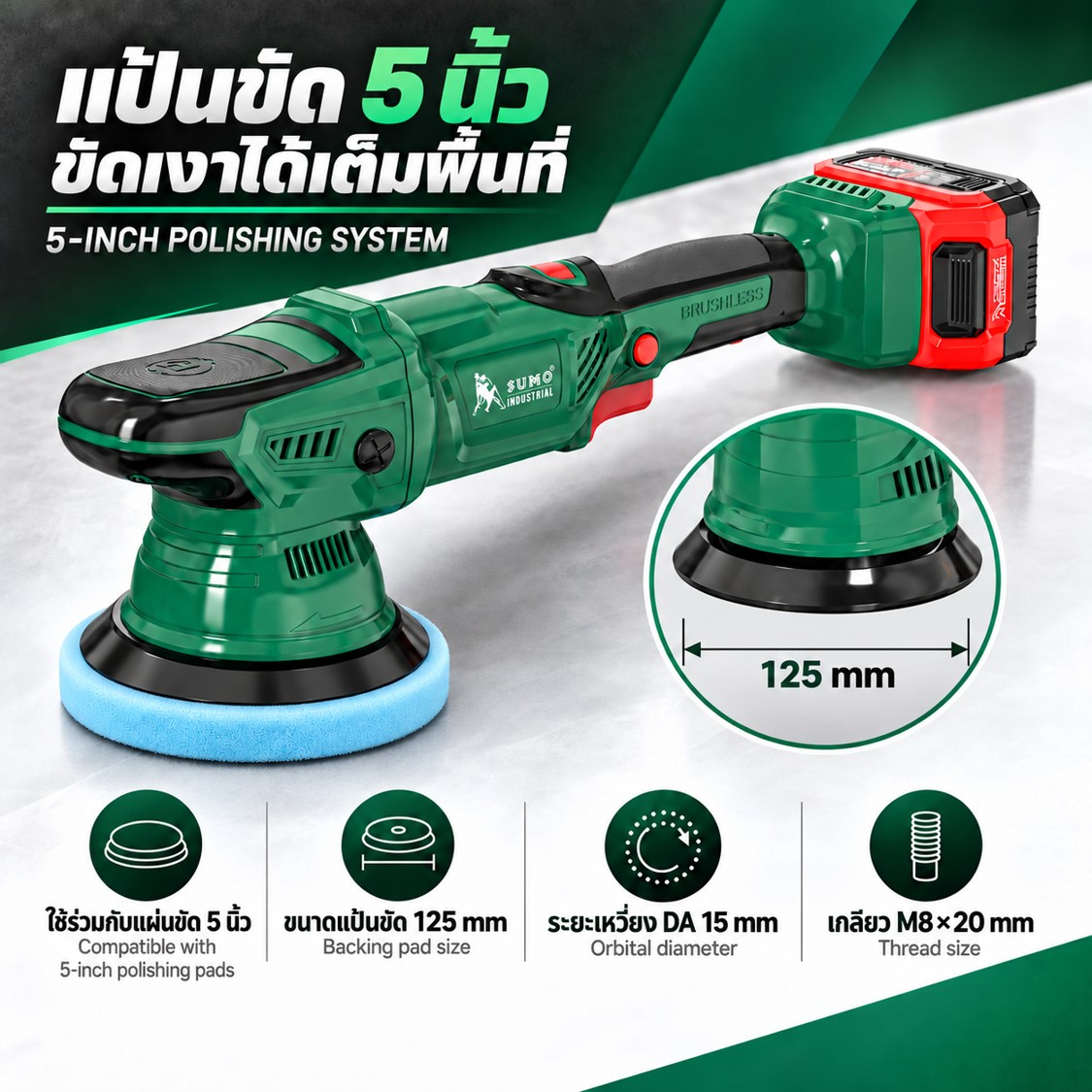

- ใช้งานร่วมกับ ฟองน้ำขนาด 125mm (5") ถอดเปลี่ยนได้ (สามารถเปลี่ยนเป็นแป้นขัด 6 นิ้วได้)

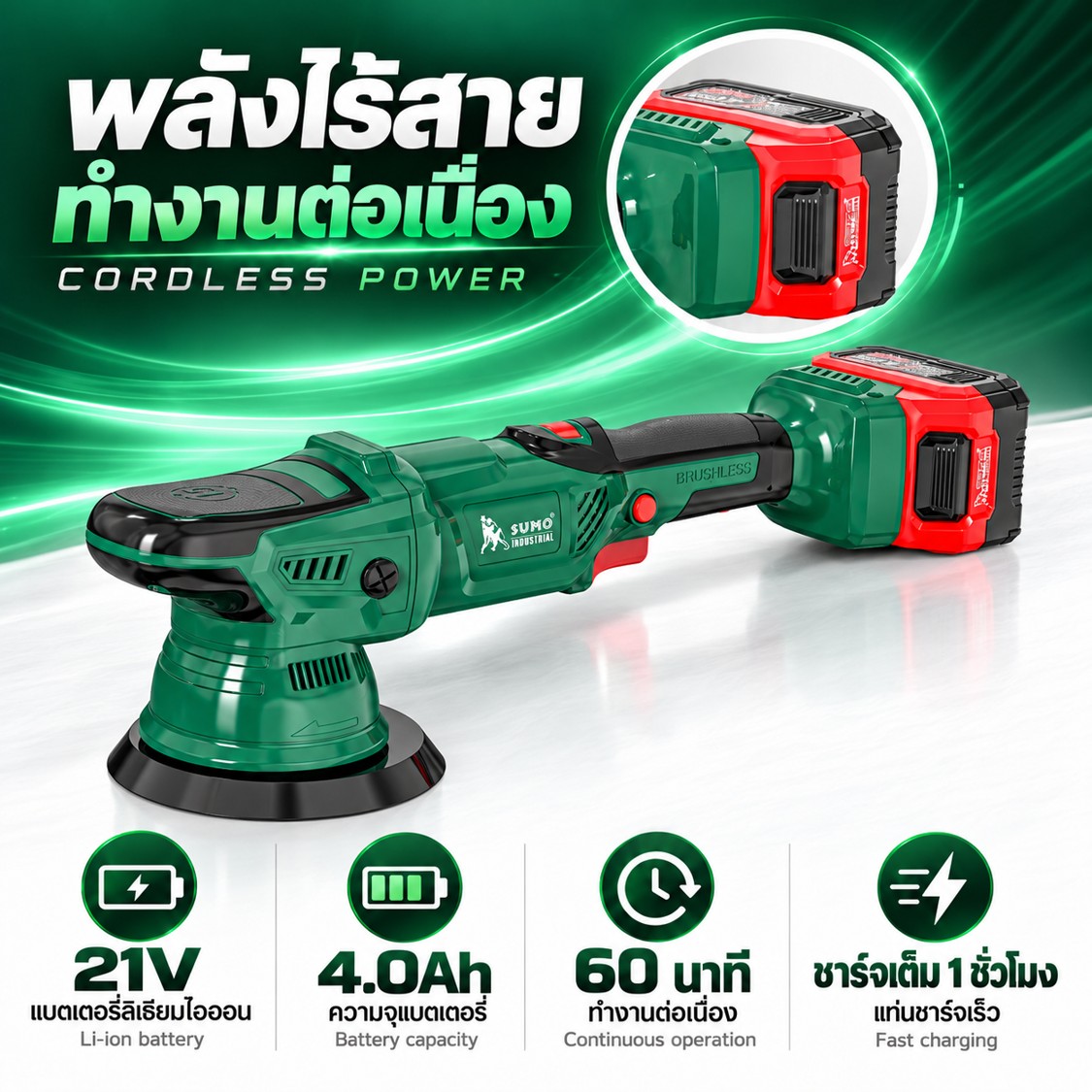

- การทำงานแบบต่อเนื่อง 60 นาที
- แท่นชาร์จฟาสชาร์จ แบบชาร์จเร็วเพียง 1 ชั่วโมง
- 21V แบตเตอรี่ลิเธียม ความจุ 4.0Ah
- ขนาดเกลียว M8x20มม.
- For car polishing, scratch removal, gloss restoration, and headlight restoration.
- 6-level adjustable speed from 2,000 to 5,000 RPM.
- Integrated LED light providing 26 Lumens while polishing.
- Compatible with 125 mm (5") polishing sponges, interchangeable (can be converted to a 6-inch backing pad).
- Continuous operation time: 60 minutes.
- Fast charger: full charge in only 1 hour.
- 21V Lithium-ion battery, 4.0Ah capacity.
- M8x20mm. Thread Size
ข้อมูลทางเทคนิค (Technical Data)
มอเตอร์ (Motor) | Brushless |
กำลังไฟฟ้า (Max. Power) | 600W |
ความเร็วรอบสูงสุด (ปรับได้ 6 ระดับ) (No-load speed) | 2000-5000rpm |
รัศมีการหนีศูนย์ (Orbital Diameter) | 15 mm. |
ขนาดฟองน้ำ (Pad Size) | 74m (3") |
ขนาดเกลียว (Thread) | M8×20 |
ขนาดสินค้า (Dimension LxWxH) | 36.5×9.5×13 ซม. |
ไฟLED (LED Spotlight) | 26 LUMENS |
น้ำหนักสินค้า (ไม่รวมแบตเตอรี่) (Net Weight) | 1.7 กิโลกรัม |
| ที่ชาร์จ (CHARGER) | |
แรงดันไฟฟ้าเข้า (Input Voltage) | 21V 50Hz |
แรงดันไฟฟ้าออก (Output Voltage) | 21.V 4.0A |
| แบตเตอรี่ (BATTERY) | |
แรงดันไฟฟ้า (Voltage) | 21V |
ขนาดความจุ (Capacity) | 4Ah |
ระยะเวลาชาร์จ (Charging Time) | 60 minutes |
ชนิด (Type) | Li-ion |
เหมาะสำหรับ (Subtable For)
- ระบบ DA เหมาะสำหรับใช้ขัดสีเคลือบเงารถยนต์ ขัดลบรอย ขัดซักเงา ขัดไฟหน้ารถ
- The DA system is suitable for polishing a car's clear coat, removing scratches, compounding/glossing, and restoring car headlights.
วิธีใช้ (How to use)
- ใช้งานร่วมกับ ฟองน้ำขนาด 125mm (5") ถอดเปลี่ยนได้ (สามารถเปลี่ยนเป็นแป้นขัด 6 นิ้วได้)
- Compatible with 125 mm (5") polishing sponges, interchangeable (can be converted to a 6-inch backing pad).
อุปกรณ์มาตรฐาน (Standard accessories)
- ประแจ 1 อัน
- ฟองน้ำขัด 1 ชิ้น
- แบตเตอรี่ 4.0Ah พร้อมเเท่นชาร์จ
- 1 Wrench
- 1 Polishing Sponge
- 4.0Ah Battery with Charger
ข้อควรระวังและการดูแล (Warning and maintenance)
- การใช้เครื่องมือหรืออุปกรณ์เสริมต่างๆนอกจากที่คู่มือผู้ใช้ได้แนะนำ อาจก่อให้เกิดการบาดเจ็บได้
- สวมใส่อุปกรณ์ป้องกันดวงตาและหูเสมอ ควรสวมใส่อุปกรณ์ป้องกันส่วนบุคคลอื่นๆ เช่นหน้ากากกันฝุ่น ถุงมือชุดป้องกัน และชุดนิรภัยต่างๆ
- The use of any accessory orattachment, other than those recommended in this instruction manual, may present a risk of personal injury.
- Always use eye and ear protection.Other personal protectiveequipment such as dust mask, gloves, helmet and apron should be worn.
คำเตือน (Warning)
- อ่านคำเตือนเพื่อความปลอดภัย และข้อแนะนำทั้งหมด การไม่ปฏิบัติตามคำเตือนและข้อแนะนำอาจเป็นสาเหตุให้ถูกไฟฟ้าดูด เกิดไฟไหม้หรือได้รับบาดเจ็บอย่างร้ายแรง
- การจัดการแบตเตอรี่: เนื่องจากเป็นระบบไร้สาย 21V Li-ion ควรหลีกเลี่ยงการใช้งานจนแบตเตอรี่หมดสนิท และไม่ควรเก็บแบตเตอรี่ในที่ที่มีอุณหภูมิสูงเกินไปเพื่อรักษาอายุการใช้งานของเซลล์แบตเตอรี่คุณภาพสูง
- Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric shock, fire, or serious injury.
- Battery management: As a 21V Li-ion wireless system, avoid using until the battery is completely depleted, and do not store the battery in areas with excessively high temperatures to preserve the life of the high-quality battery cells.
คุณสมบัติ (Feature)
- สำหรับขัดเงาสีรถยนต์ ขัดลบรอย ขัดซักเงา ขัดไฟหน้ารถ
- ปรับรอบได้ 6 ระดับ 2000-5000 RPM
- เพิ่มไฟLEDขณะขัด 26 LUMENS
- ใช้งานร่วมกับ ฟองน้ำขนาด 125mm (5") ถอดเปลี่ยนได้ (สามารถเปลี่ยนเป็นแป้นขัด 6 นิ้วได้)
- การทำงานแบบต่อเนื่อง 60 นาที
- แท่นชาร์จฟาสชาร์จ แบบชาร์จเร็วเพียง 1 ชั่วโมง
- 21V แบตเตอรี่ลิเธียม ความจุ 4.0Ah
- ขนาดเกลียว M8x20มม.
- For car polishing, scratch removal, gloss restoration, and headlight restoration.
- 6-level adjustable speed from 2,000 to 5,000 RPM.
- Integrated LED light providing 26 Lumens while polishing.
- Compatible with 125 mm (5") polishing sponges, interchangeable (can be converted to a 6-inch backing pad).
- Continuous operation time: 60 minutes.
- Fast charger: full charge in only 1 hour.
- 21V Lithium-ion battery, 4.0Ah capacity.
- M8x20mm. Thread Size
ข้อมูลทางเทคนิค (Technical Data)
มอเตอร์ (Motor) | Brushless |
กำลังไฟฟ้า (Max. Power) | 600W |
ความเร็วรอบสูงสุด (ปรับได้ 6 ระดับ) (No-load speed) | 2000-5000rpm |
รัศมีการหนีศูนย์ (Orbital Diameter) | 15 mm. |
ขนาดฟองน้ำ (Pad Size) | 74m (3") |
ขนาดเกลียว (Thread) | M8×20 |
ขนาดสินค้า (Dimension LxWxH) | 36.5×9.5×13 ซม. |
ไฟLED (LED Spotlight) | 26 LUMENS |
น้ำหนักสินค้า (ไม่รวมแบตเตอรี่) (Net Weight) | 1.7 กิโลกรัม |
| ที่ชาร์จ (CHARGER) | |
แรงดันไฟฟ้าเข้า (Input Voltage) | 21V 50Hz |
แรงดันไฟฟ้าออก (Output Voltage) | 21.V 4.0A |
| แบตเตอรี่ (BATTERY) | |
แรงดันไฟฟ้า (Voltage) | 21V |
ขนาดความจุ (Capacity) | 4Ah |
ระยะเวลาชาร์จ (Charging Time) | 60 minutes |
ชนิด (Type) | Li-ion |
วิธีใช้ (How to use)
- ใช้งานร่วมกับ ฟองน้ำขนาด 125mm (5") ถอดเปลี่ยนได้ (สามารถเปลี่ยนเป็นแป้นขัด 6 นิ้วได้)
- Compatible with 125 mm (5") polishing sponges, interchangeable (can be converted to a 6-inch backing pad).
ข้อควรระวังและการดูแล (Warning and maintenance)
- การใช้เครื่องมือหรืออุปกรณ์เสริมต่างๆนอกจากที่คู่มือผู้ใช้ได้แนะนำ อาจก่อให้เกิดการบาดเจ็บได้
- สวมใส่อุปกรณ์ป้องกันดวงตาและหูเสมอ ควรสวมใส่อุปกรณ์ป้องกันส่วนบุคคลอื่นๆ เช่นหน้ากากกันฝุ่น ถุงมือชุดป้องกัน และชุดนิรภัยต่างๆ
- The use of any accessory orattachment, other than those recommended in this instruction manual, may present a risk of personal injury.
- Always use eye and ear protection.Other personal protectiveequipment such as dust mask, gloves, helmet and apron should be worn.
คำเตือน (Warning)
- อ่านคำเตือนเพื่อความปลอดภัย และข้อแนะนำทั้งหมด การไม่ปฏิบัติตามคำเตือนและข้อแนะนำอาจเป็นสาเหตุให้ถูกไฟฟ้าดูด เกิดไฟไหม้หรือได้รับบาดเจ็บอย่างร้ายแรง
- การจัดการแบตเตอรี่: เนื่องจากเป็นระบบไร้สาย 21V Li-ion ควรหลีกเลี่ยงการใช้งานจนแบตเตอรี่หมดสนิท และไม่ควรเก็บแบตเตอรี่ในที่ที่มีอุณหภูมิสูงเกินไปเพื่อรักษาอายุการใช้งานของเซลล์แบตเตอรี่คุณภาพสูง
- Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric shock, fire, or serious injury.
- Battery management: As a 21V Li-ion wireless system, avoid using until the battery is completely depleted, and do not store the battery in areas with excessively high temperatures to preserve the life of the high-quality battery cells.
