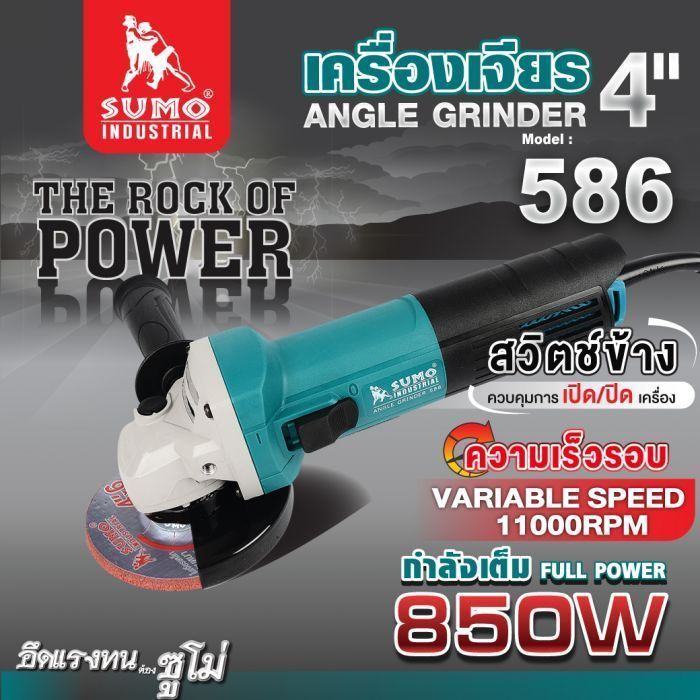

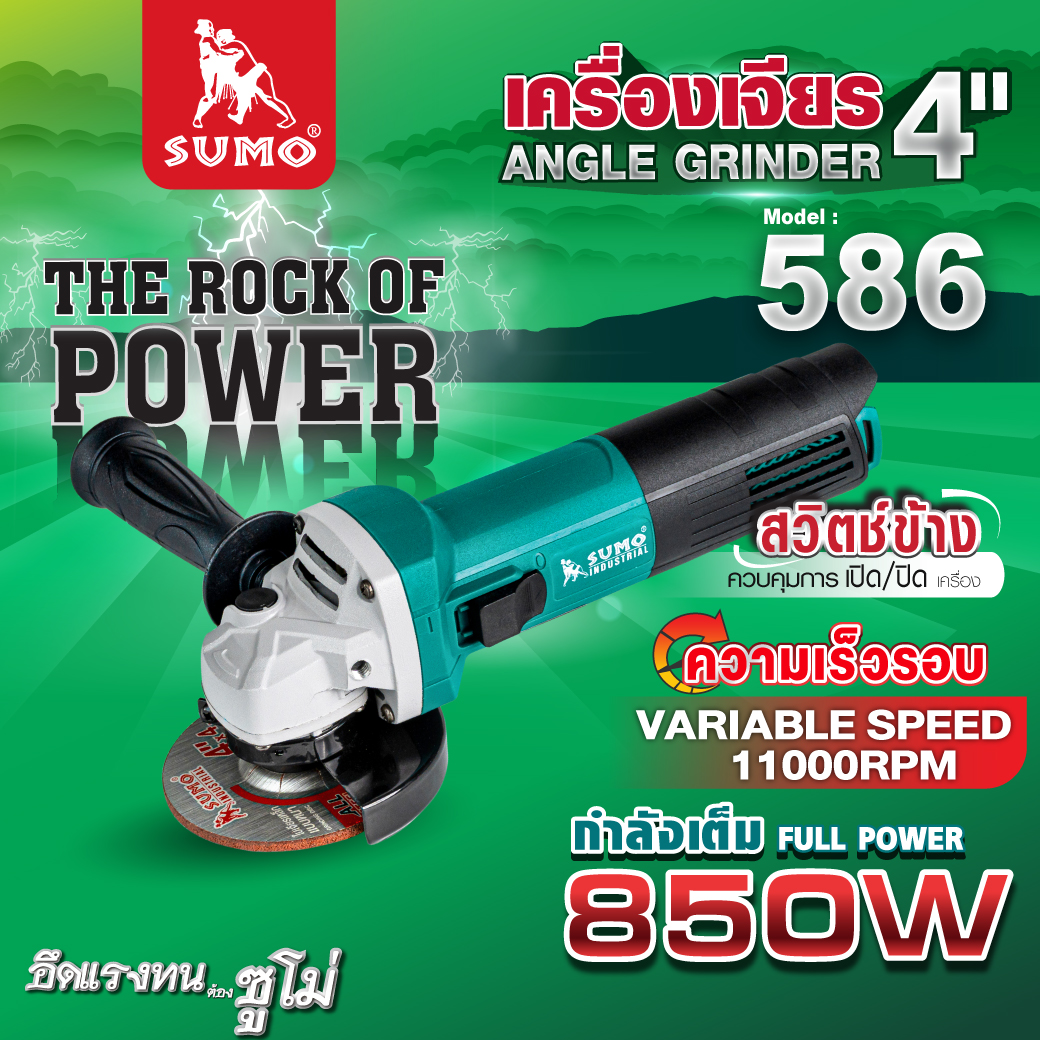

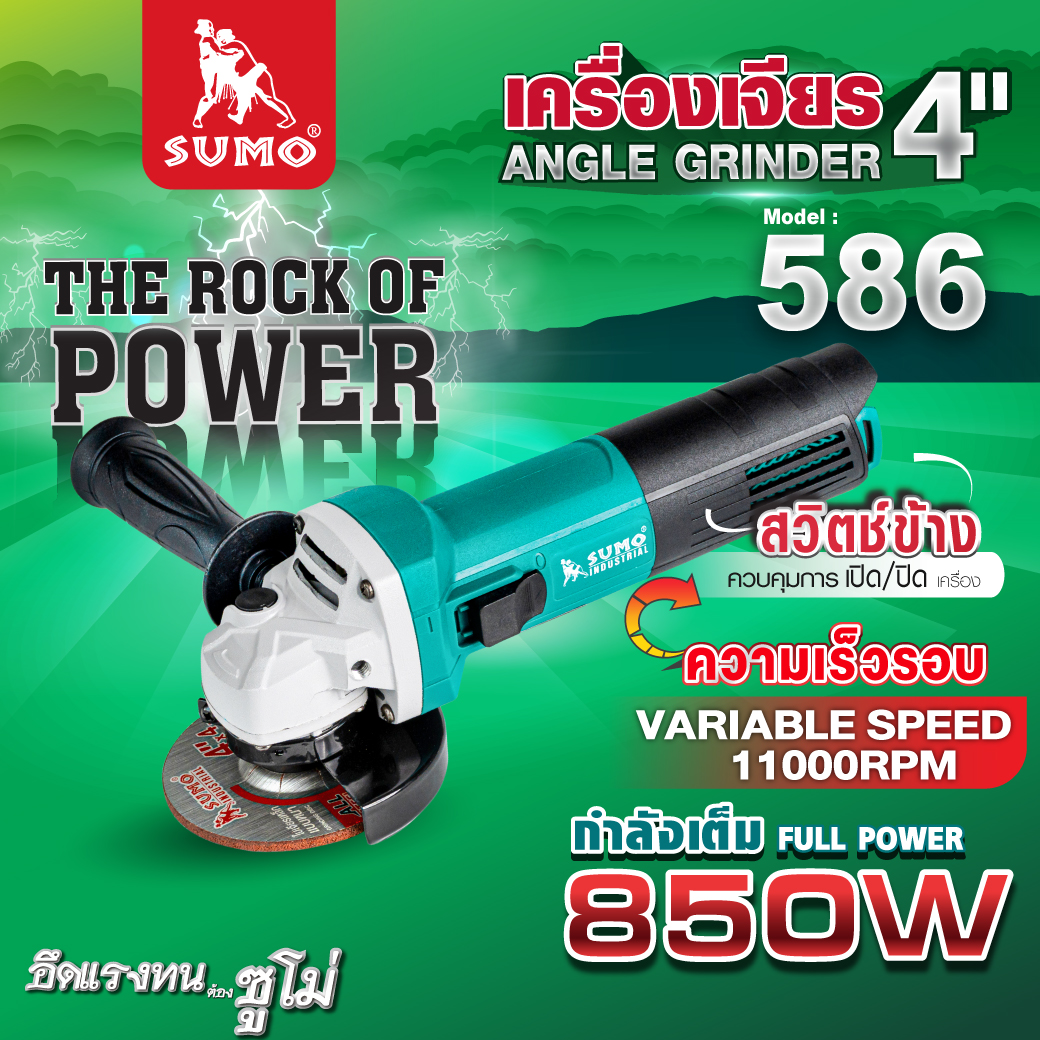

เครื่องเจียร 4" รุ่น 586 SUMO
Angle Grinder 4" Mod. 586 SUMO







เครื่องเจียร 4" รุ่น 586 SUMO
Angle Grinder 4" Mod.586 SUMO
รายละเอียด
เหมาะสำหรับ (Suitable for)
- เครื่องเจียร 4นิ้ว งานเจียรตกแต่งชิ้นงาน งานตัด งานขัดเตรียมผิว
- Used for grinding and removing the excess material from work piece, cutting and surface polishing.
คุณสมบัติ (Feature)
- เครื่องเจียร 4 นิ้ว ตัวเครื่องผลิตจากวัสดุเอ็นจิเนียริ่งพลาสติกที่ไม่ลามไฟ ทนความร้อนได้สูง
- เมื่อใช้เครื่องมือเป็นเวลานาน อาจมีฝุ่นสะสม สามารถถอดแผ่นนี้ออกมาทำความสะอาดได้
- เปลี่ยนใบง่ายเพียงกดปุ่ม
- สวิตช์ข้างเหมาะกับงานบนที่สูง ให้ความสะดวกและปลอดภัยในการใช้งานเพียงมือเดียวเพื่อควบคุมเครื่องเจียร
- Flame-resistant engineering plastic.
- When using the machine for a long time, dust may accumulate. The plate can be removed for cleaning.
- Press the button for easy disc replacement.
- Switch on the side, suitable for working at height. Convenient and safe for one-handed operation of the angle grinder.
วิธีใช้ (How to use)
- เครื่องเจียร์ 4นิ้ว ใช้งานคู่กับ ใบตัด ใบเจียร แปรงลวด ผ้าทรายซ้อน กระดาษทราย แผ่นขัดเงา เป็นต้น
- Used for various materials such as cutting disc, grinding disc, wire, brush, flap disc, sanding disc and polishing pad.)
อุปกรณ์มาตรฐาน (Standard Accessories)
- ประแจ (Wrench)
- แปรงถ่าน (Carbon Brush)
คำเตือน (WARNING)
- ก่อนการประกอบและการปรับแต่ง ให้ดึงปลั๊กไฟออกจากเต้าเสียบเสมอ
- อ่านคำเตือนเพื่อความปลอดภัยและข้อแนะนำทั้งหมด การไม่ปฏิบัติตามคำเตือนและข้อแนะนำอาจเป็นสาเหตุให้ถูกไฟฟ้าดูด เกิดไฟไหม้ หรือได้รับบาดเจ็บอย่างร้ายแรง
- Prior to assembly and adjustment, always unplug the power cord from the mains socket.
- Read all safety warnings and instructions. Failure to follow them may result in electric shock, fire, or serious injury.

รายละเอียด (Specification)
แรงดันไฟฟ้า Rated Voltage | 220V |
ความถี่ไฟฟ้า Rated Frequency | 50Hz |
กำลังไฟฟ้า Rated Input Power | 850W |
ความเร็วรอบ No-Load Speed | 11000 RPM |
เกลียวบนแกนเครื่อง Spindle Thread | M10 |
ขนาดใบเจียร Diameter Of Wheel | ⌀100mm |
ขนาดรูของใบตัด Hole Diameter of wheel | ⌀16mm |
ขนาดแปรงถ่าน Carbon brush | 6x9x16mm |
ขนาดความยาวสายไฟ | 2m |
ขนาดเครื่อง Dimension | 26.5x7.5x10cm |
น้ำหนัก Net Weight | 1.9kg |
