กาพ่นโซล่ากระป๋องเหล็ก รุ่น DO-10 SUMO
Washing Gun Mod. DO-10 SUMO
รายละเอียด
กาพ่นโซล่ากระป๋องเหล็ก รุ่น DO-10 SUMO
Washing Gun DO-10 SUMO
เหมาะสำหรับ Suitable for

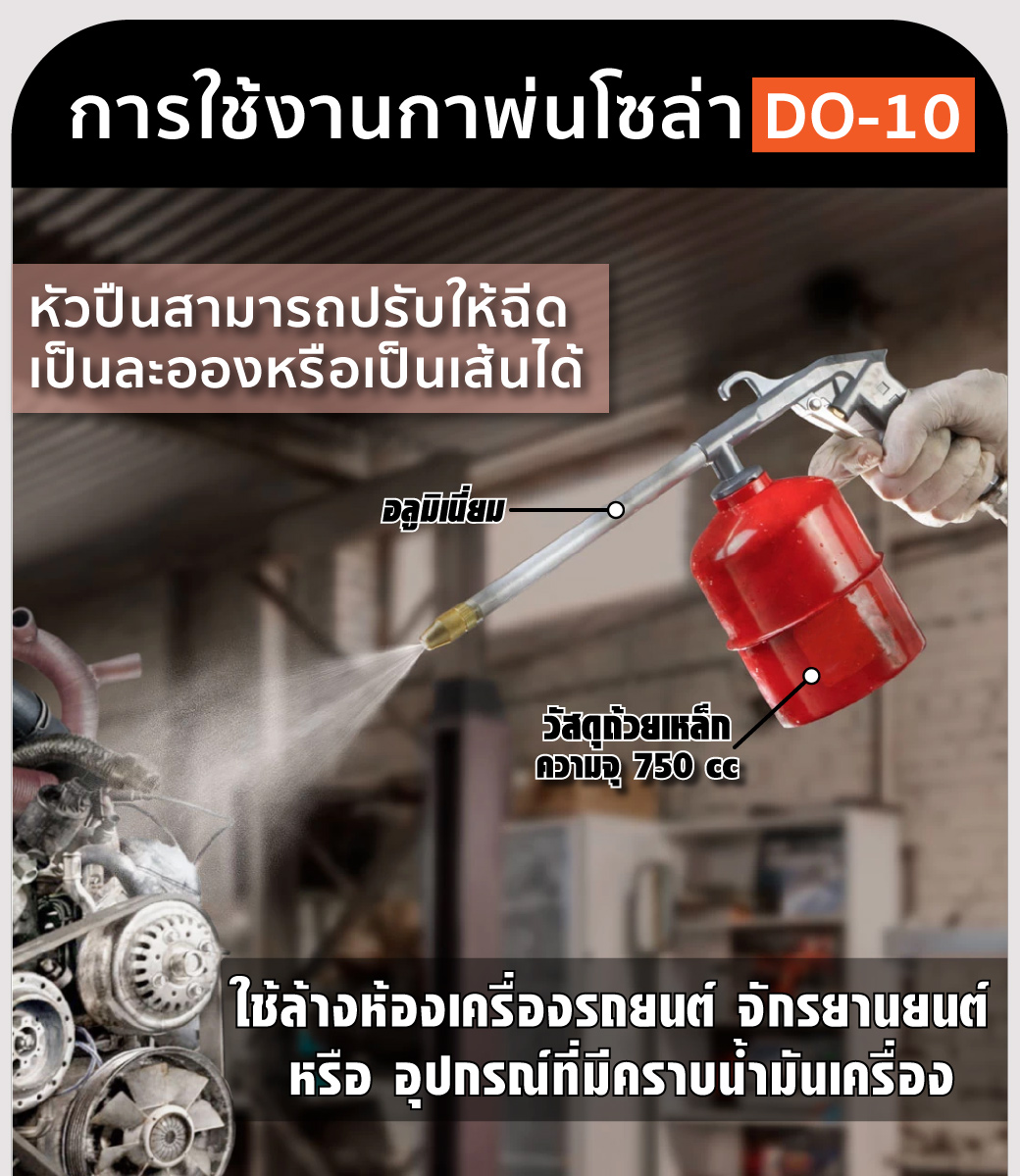

กาพ่นโซล่ากระป๋องเหล็ก ใช้สำหรับงานพ่นน้ำมันโซล่าหรือเบนซิล ใช้ล้างห้องเครื่องรถยนต์ จักรยานยนต์ หรือ อุปกรณ์ที่มีคราบน้ำมันเครื่อง หัวปืนสามารถปรับให้ฉีดเป็นละอองหรือเป็นเส้นได้ ตัวเรือนทำจากอลูมิเนียม แข็งแรง ทนทานต่อการตกหล่น หรือกระแทก
กาพ่นโซล่า กาพ่นรถยนต์ กาฉีดรถยน กาน้ำมันพ่นรถ

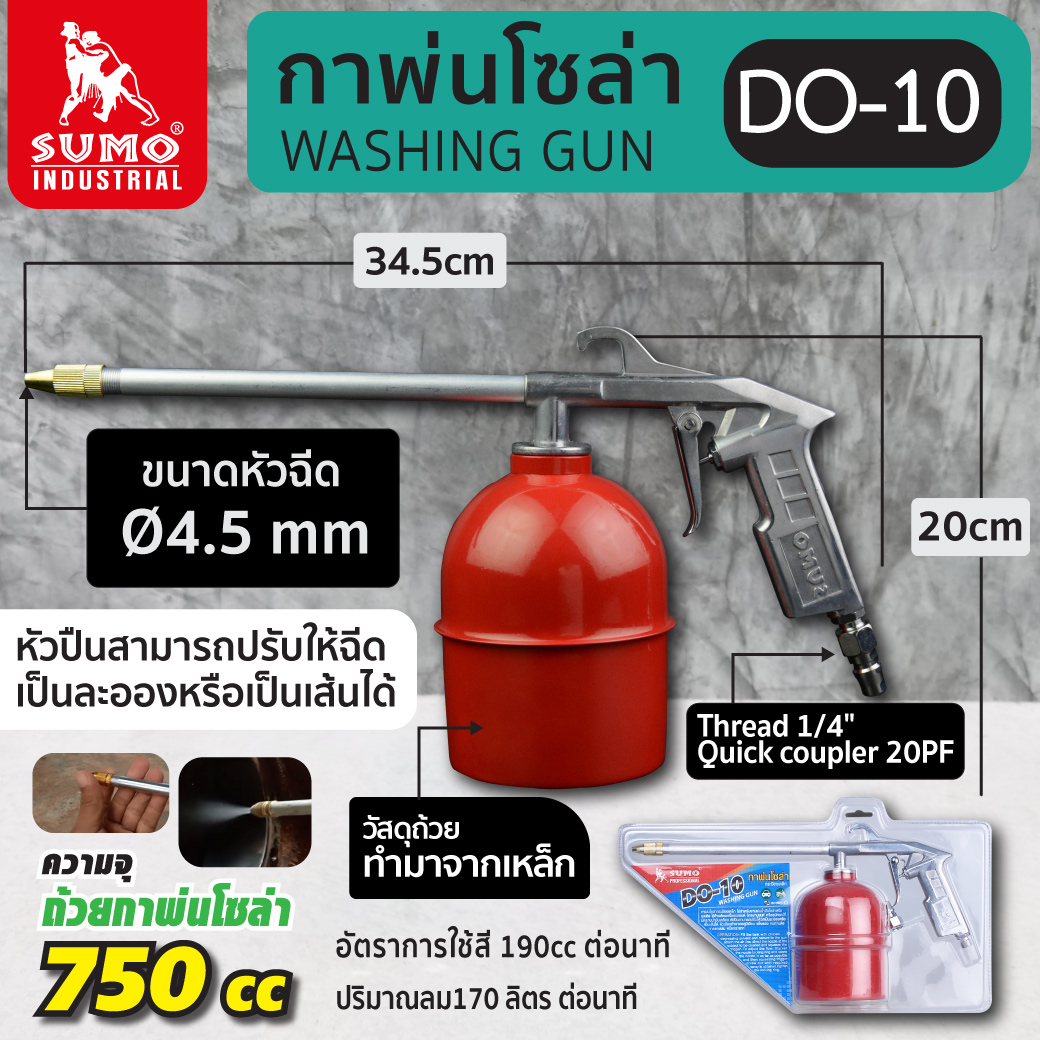

ขนาดสินค้า Product size
Degreasing gun
- The degreasing gun is used for cleaning dirty, oily components using paraffin of degreasing solvent.
Operation
- Fill the tank with chosen degreasing solvent and secure to the gun attach the air line, direct the nozzle at the subject the flow. Stacker the nozzle locking ring and screw the nozzle in as far as possible and then squeezing trigger screw out until required spray is obtained. Tighten the locking ring.

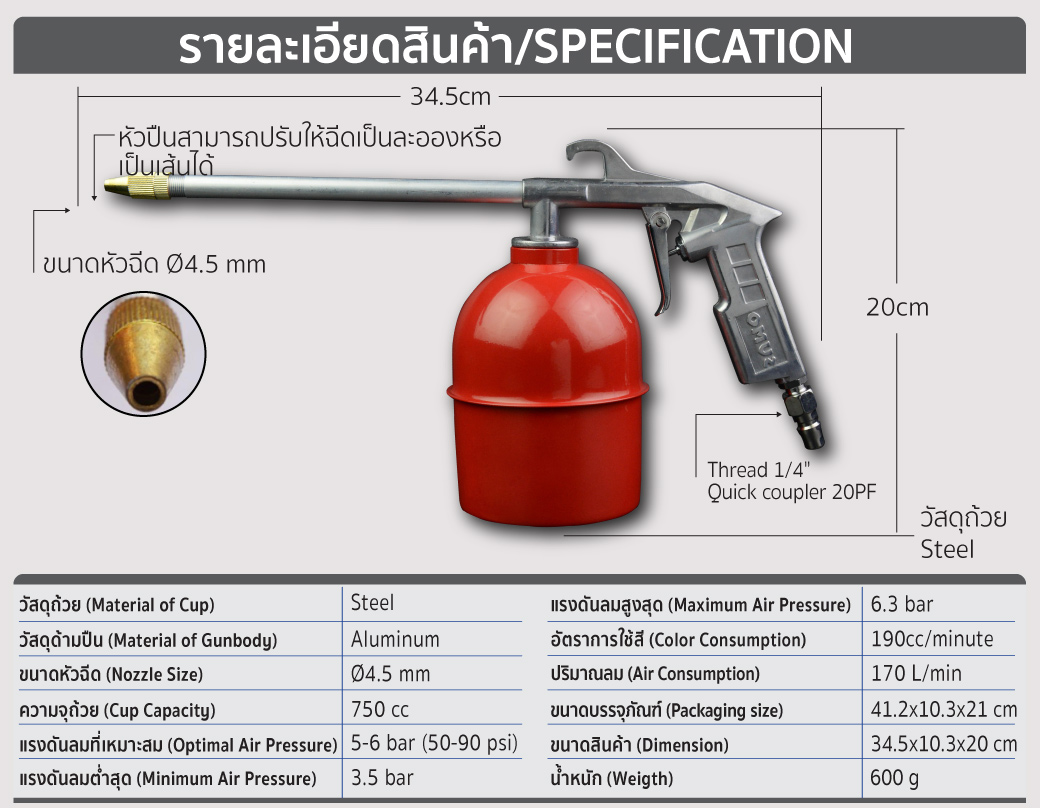

รายละเอียดสินค้า (Specification)
วัสดุถ้วย (Material of Cup) | Steel |
ขนาดหัวฉีด (Nozzle Size) | Ø4.5 mm. |
ความจุถ้วย (Cup Capacity) | 750 cc |

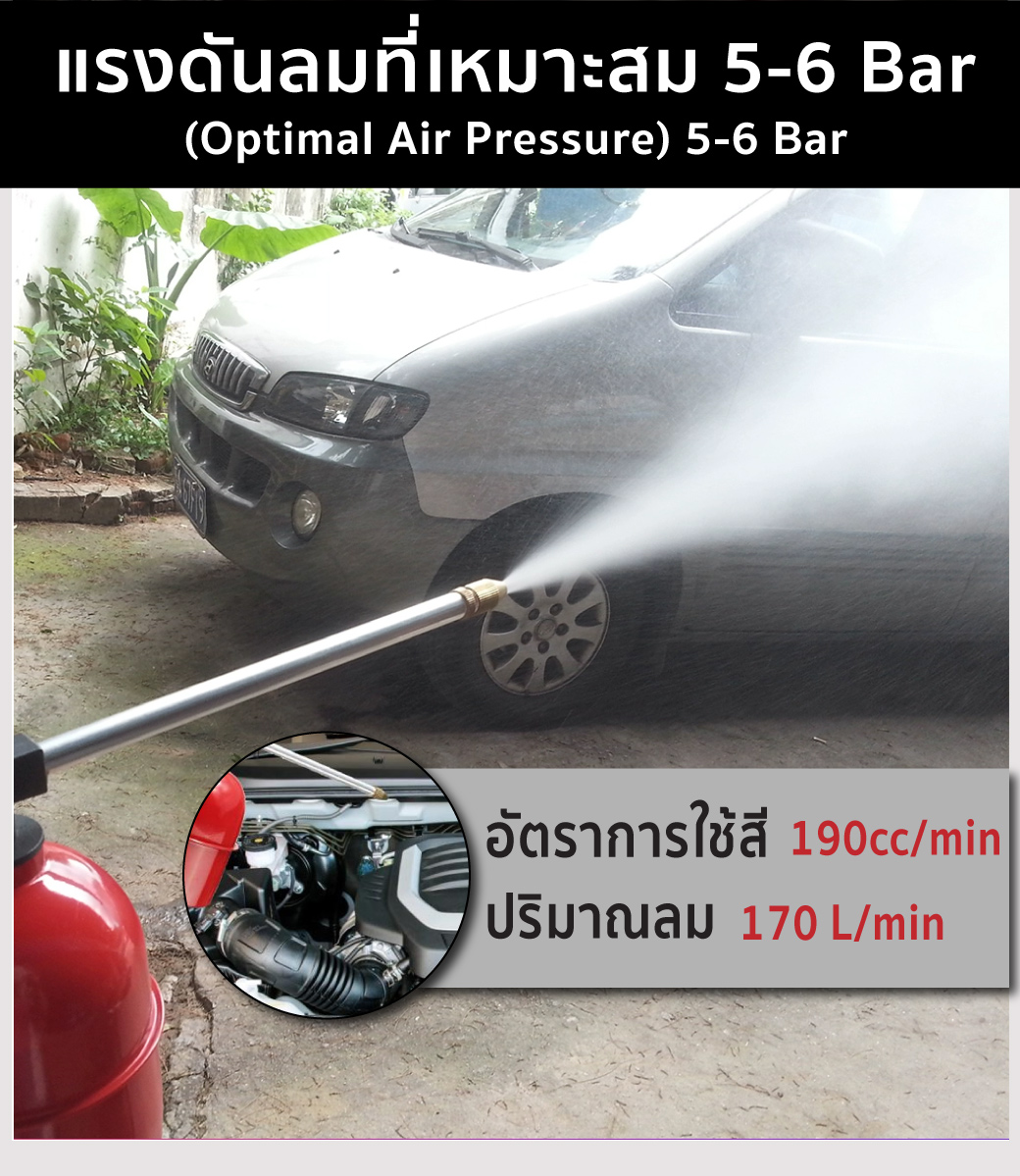

แรงดันลมที่เหมาะสม (Optimal Air Pressure) | 5-6 bar (50-90 psi) |
อัตราการใช้สี (Color Consumption) | 190cc./min. |
อัตราการกินลม (Average Air Consumpting) | 170 L/min. |
ทางลมเข้า (Air Inlet) | Thread 1 / 4” , Quick coupler 20PF |
คำเตือน (Warning)
- ควรสวมอุปกรณ์ป้องกัน เช่น ถุงมือ หน้ากาก ตัวกรองอากาศที่มีถ่านกัมมันต์ และควรสวมใส่เสื้อผ้าที่มิดชิด
- กาพ่นสีเป็นงานที่เกี่ยวข้องกับสีและทินเนอร์ซึ่งมีความไวไฟสูง ควรใช้งานในพื้นที่ที่มีอากาศถ่ายเทและหลีกเลี่ยงการกระทำใดๆ ที่อาจก่อให้เกิดไฟไหม้ เช่น การสูบบุหรี่ สแลกจากงานเชื่อม ประกายไฟ หรือองค์ประกอบที่ทำให้เกิดไฟ
- Should wearing glove and glasses to protect the injury and should wear clothes that are entirely.
รายละเอียดสินค้า (Specification)
วัสดุถ้วย (Material of Cup) | Steel |
ขนาดหัวฉีด (Nozzle Size) | Ø4.5 mm. |
ความจุถ้วย (Cup Capacity) | 750 cc |
แรงดันลมที่เหมาะสม (Optimal Air Pressure) | 5-6 bar (50-90 psi) |
อัตราการใช้สี (Color Consumption) | 190cc./min. |
อัตราการกินลม (Average Air Consumpting) | 170 L/min. |
ทางลมเข้า (Air Inlet) | Thread 1 / 4” , Quick coupler 20PF |
