เครื่องเจียร 4" รุ่น 586 SUMO

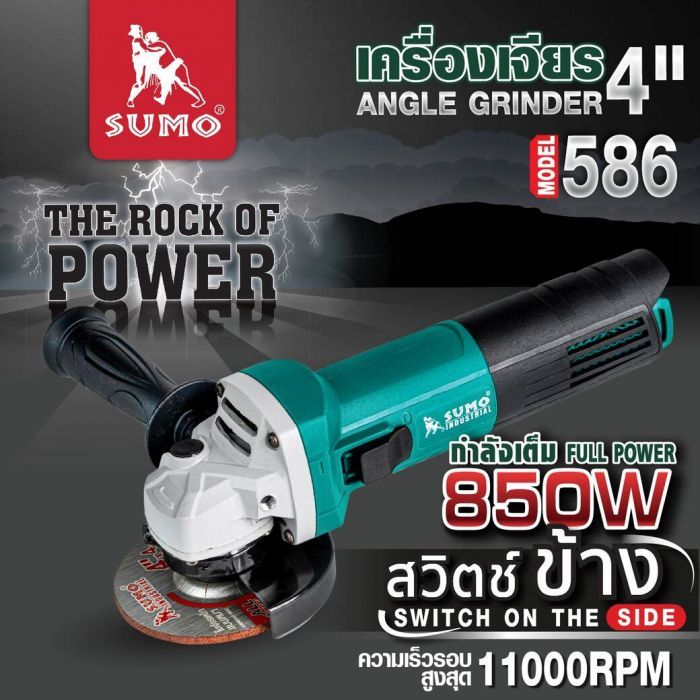

Angle Grinder 4" Mod. 586 SUMO







เครื่องเจียร 4" รุ่น 586 SUMO
Angle Grinder 4" Mod.586 SUMO
รายละเอียด
เหมาะสำหรับ (Suitable for)
- เครื่องเจียร 4นิ้ว งานเจียรตกแต่งชิ้นงาน งานตัด งานขัดเตรียมผิว
(Used for grinding and removing the excess material from work piece, cutting and surface polishing.)
คุณสมบัติ (Feature)
- เครื่องเจียร 4นิ้ว ตัวเครื่องผลิตจากวัสดุเอ็นจิเนียริ่งพลาสติกที่ไม่ลามไฟ ทนความร้อนได้สูง
(Flame resistant engineering plastic.) - เมื่อใช้เครื่องมือเป็นเวลานาน อาจมีฝุ่นสะสม สามารถถอดแผ่นนี้ออกมาทำความสะอาดได้
(When using the machine a long time, most the dust will accmulate on the plate, its can take out fo clear the dust.) - เปลี่ยนใบง่ายเพียงกดปุ่ม
(Press the button for replacing the disc easily.) - สวิตช์ข้างเหมาะกับงานบนที่สูงให้ความสะดวกและปลอดภัยในการใช้งานเพียงมือเดียวเพื่อควบคุมเครื่องเจียร
(Switch on the side Subitable for working on the high place, convenient and safe, control the angle grinder by only one hand.)
วิธีใช้ (How to use)
- เครื่องเจียร์ 4นิ้ว ใช้งานคู่กับ ใบตัด ใบเจียร แปรงลวด ผ้าทรายซ้อน กระดาษทราย แผ่นขัดเงา เป็นต้น
(Used for various materials such as cutting disc, grinding disc, wire, brush, flap disc, sanding disc and polishing pad.)
อุปกรณ์มาตรฐาน (Standard Accessories)
- ประแจ (Wrench)
- แปรงถ่าน (Carbon Brush)
คำเตือน (WARNING)
- ก่อนการประกอบและการปรับแต่งให้ดึงปลั๊กไฟออกจากเต้าเสียบเสมอ
(Prior to assemble and adjustment always pull out the power plug from the mains socket.) - อ่านคำเตือนเพื่อความปลอดภัยและข้อแนะนำทั้งหมด การไม่ปฏิบัติตามคำเตือนและข้อแนะนำอาจเป็นสาเหตุให้ถูกไฟฟ้าดูด เกิดไฟไหม้ หรือได้รับบาดเจ็บอย่างร้ายแรง
(Read all safety warnings and all instructuins. Failure to follow the warning and instructions may result in electric shock, fire or serious injury.)
วีดีโอตัวอย่างการใช้งาน

รายละเอียด (Specification)
แรงดันไฟฟ้า Rated Voltage | 220V |
ความถี่ไฟฟ้า Rated Frequency | 50Hz |
กำลังไฟฟ้า Rated Input Power | 850W |
ความเร็วรอบ No-Load Speed | 11000 RPM |
เกลียวบนแกนเครื่อง Spindle Thread | M10 |
ขนาดใบเจียร Diameter Of Wheel | ⌀100mm |
ขนาดรูของใบตัด Hole Diameter of wheel | ⌀16mm |
ขนาดแปรงถ่าน Carbon brush | 6x9x16mm |
ขนาดความยาวสายไฟ | 2m |
ขนาดเครื่อง Dimension | 26.5x7.5x10cm |
น้ำหนัก Net Weight | 1.9kg |
